特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用
RAYSAN PFA三通（一端省空间）RTS1A
特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用

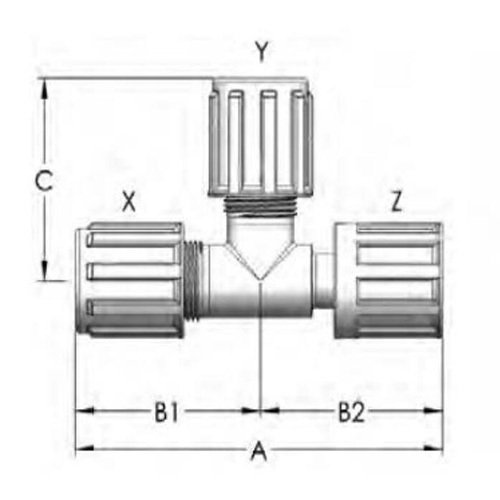

| Part No. | X | Y | Z (省空间) | 通径 | A | B1 | B2 | C |
| (inch) | (inch) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| RTS1A040404S1 | 1/4" | 1/4" | 1/4" | 3.81mm | 83.82mm | 42.16mm | 41.66mm | 42.16mm |
| RTS1A040808S1 | 1/4" | 1/2" | 1/2" | 3.81mm | 88.90mm | 42.16mm | 46.74mm | 47.50mm |
| RTS1A060406S1 | 3/8" | 1/4" | 3/8" | 3.81mm | 88.65mm | 44.70mm | 43.94mm | 42.16mm |
| RTS1A060606S1 | 3/8" | 3/8" | 3/8" | 6.35mm | 88.65mm | 44.70mm | 43.94mm | 44.70mm |
| RTS1A060608S1 | 3/8" | 3/8" | 1/2" | 6.35mm | 91.44mm | 44.70mm | 46.74mm | 44.70mm |
| RTS1A060808S1 | 3/8" | 1/2" | 1/2" | 6.35mm | 91.44mm | 44.70mm | 46.74mm | 47.50mm |
| RTS1A061212S1 | 3/8" | 3/4" | 3/4" | 6.35mm | 98.81mm | 44.70mm | 54.10mm | 56.39mm |
| RTS1A080408S1 | 1/2" | 1/4" | 1/2" | 3.81mm | 94.23mm | 47.50mm | 46.74mm | 42.16mm |
| RTS1A080606S1 | 1/2" | 3/8" | 3/8" | 6.35mm | 91.44mm | 47.50mm | 43.94mm | 44.70mm |
| RTS1A080608S1 | 1/2" | 3/8" | 1/2" | 6.35mm | 94.23mm | 47.50mm | 46.74mm | 44.70mm |
| RTS1A080806S1 | 1/2" | 1/2" | 3/8" | 6.35mm | 91.44mm | 47.50mm | 43.94mm | 47.50mm |
| RTS1A080808S1 | 1/2" | 1/2" | 1/2" | 9.65mm | 94.23mm | 47.50mm | 43.94mm | 47.50mm |
| RTS1A080812S1 | 1/2" | 1/2" | 3/4" | 9.65mm | 101.60mm | 47.50mm | 54.10mm | 47.50mm |
| RTS1A120412S1 | 3/4" | 1/4" | 3/4" | 3.81mm | 110.49mm | 56.39mm | 54.10mm | 42.16mm |
| RTS1A120612S1 | 3/4" | 3/8" | 3/4" | 6.35mm | 110.49mm | 56.39mm | 54.10mm | 44.70mm |
| RTS1A120812S1 | 3/4" | 1/2" | 3/4" | 9.65mm | 110.49mm | 56.39mm | 54.10mm | 47.50mm |
| RTS1A121208S1 | 3/4" | 3/4" | 1/2" | 9.65mm | 103.12mm | 56.39mm | 46.74mm | 56.39mm |
| RTS1A121212S1 | 3/4" | 3/4" | 3/4" | 16.00mm | 110.49mm | 56.39mm | 54.10mm | 56.39mm |
| RTS1A160416S1 | 1" | 1/4" | 1" | 16.00mm | 138.18mm | 68.58mm | 69.60mm | 51.31mm |
| RTS1A160616S1 | 1" | 3/8" | 1" | 6.35mm | 138.18mm | 68.58mm | 69.60mm | 54.10mm |
| RTS1A160816S1 | 1" | 1/2" | 1" | 9.65mm | 138.18mm | 68.58mm | 69.60mm | 57.40mm |
| RTS1A161216S1 | 1" | 3/4" | 1" | 16.00mm | 138.18mm | 68.58mm | 69.60mm | 56.39mm |
| RTS1A161612S1 | 1" | 1" | 3/4" | 16.00mm | 125.48mm | 68.58mm | 69.60mm | 68.58mm |
| RTS1A161616S1 | 1" | 1" | 1" | 22.35mm | 138.18mm | 68.58mm | 69.60mm | 68.58mm |
