特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用
RAYSAN PFA三通（中间省空间）BTSA
特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用

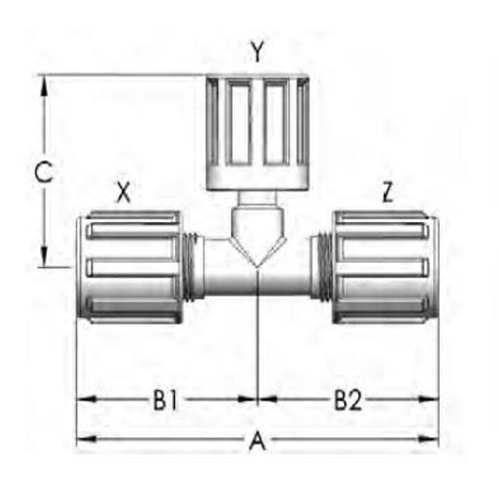

| 编码 | X | Y (省空间) | Z | 通径 | A | B1 | B2 | C |
| (inch) | (inch) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| BTSA0404S041 | 1/4" | 1/4" | 1/4" | 3.81mm | 84.33mm | 42.16mm | 42.16mm | 41.66mm |
| BTSA0406S041 | 1/4" | 3/8" | 1/4" | 3.81mm | 84.33mm | 42.16mm | 42.16mm | 43.94mm |
| BTSA0604S061 | 3/8" | 1/4" | 3/8" | 3.81mm | 89.41mm | 44.70mm | 44.70mm | 41.66mm |
| BTSA0606S061 | 3/8" | 3/8" | 3/8" | 6.35mm | 89.41mm | 44.70mm | 44.70mm | 41.66mm |
| BTSA0608S061 | 3/8" | 1/2" | 3/8" | 6.35mm | 89.41mm | 44.70mm | 47.50mm | 46.74mm |
| BTSA0804S081 | 1/2" | 1/4" | 1/2" | 3.81mm | 95.00mm | 47.50mm | 47.50mm | 41.66mm |
| BTSA0808S041 | 1/2" | 1/2" | 1/4" | 3.81mm | 89.66mm | 47.50mm | 42.16mm | 46.74mm |
| BTSA0808S061 | 1/2" | 1/2" | 3/8" | 6.35mm | 92.20mm | 47.50mm | 44.70mm | 46.74mm |
| BTSA0808S081 | 1/2" | 1/2" | 1/2" | 9.65mm | 95.00mm | 47.50mm | 47.50mm | 46.74mm |
| BTSA0812S081 | 1/2" | 3/4" | 1/2" | 9.65mm | 95.00mm | 47.50mm | 47.50mm | 54.10mm |
| BTSA1204S121 | 3/4" | 1/4" | 3/4" | 3.81mm | 112.78mm | 56.39mm | 56.39mm | 41.66mm |
| BTSA1206S121 | 3/4" | 3/8" | 3/4" | 6.35mm | 112.78mm | 56.39mm | 56.39mm | 43.94mm |
| BTSA1208S081 | 3/4" | 1/2" | 1/2" | 9.65mm | 103.89mm | 56.39mm | 47.50mm | 46.74mm |
| BTSA1208S121 | 3/4" | 1/2" | 3/4" | 9.65mm | 112.78mm | 56.39mm | 56.39mm | 50.04mm |
| BTSA1212S121 | 3/4" | 3/4" | 3/4" | 16.00mm | 112.78mm | 56.39mm | 56.39mm | 54.10mm |
| BTSA1216S121 | 3/4" | 1" | 3/4" | 16.00mm | 112.78mm | 56.39mm | 56.39mm | 69.60mm |
| BTSA1608S161 | 1" | 1/2" | 1" | 9.65mm | 137.16mm | 68.58mm | 68.58mm | 53.09mm |
| BTSA1612S161 | 1" | 3/4" | 1" | 16.00mm | 137.16mm | 68.58mm | 68.58mm | 56.64mm |
| BTSA1616S161 | 1" | 1" | 1" | 22.35mm | 137.16mm | 68.58mm | 68.58mm | 69.60mm |
