特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用

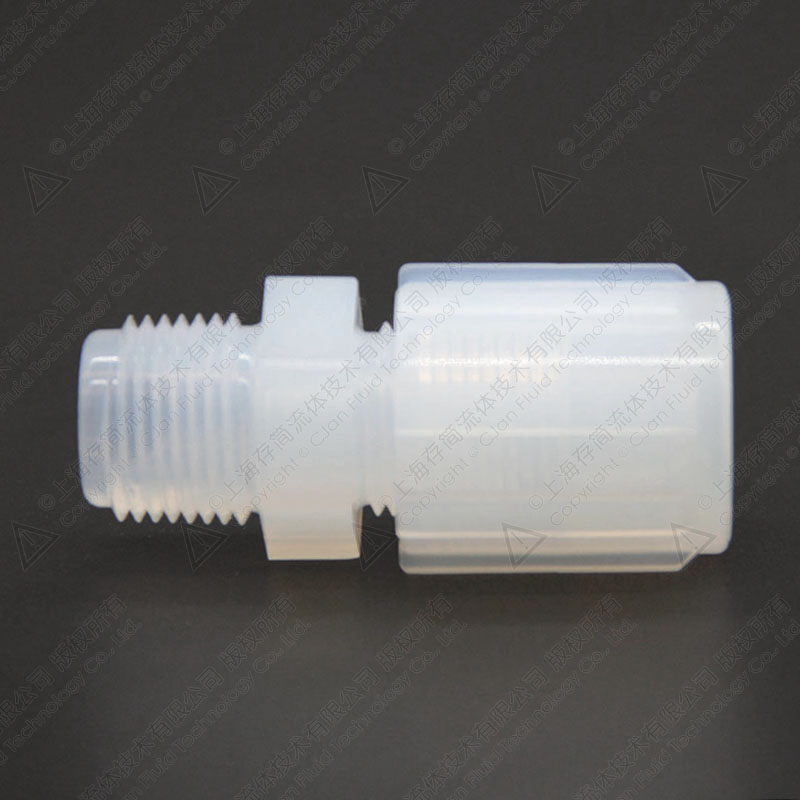

PFA外丝直通接头 MCA
特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用

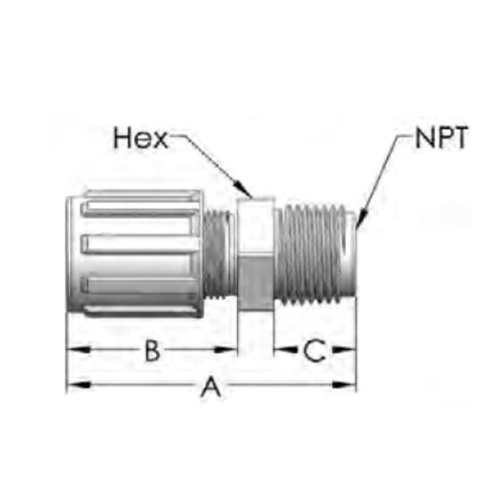

| 编码 | 管外径 | 螺纹NPT | 通径 | A | B | C | Hex |
| (inch) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| MCA04021 | 1/4" | 1/8" | 3.81mm | 48.51mm | 29.46mm | 11.43mm | 15.88mm |
| MCA04041 | 1/4" | 1/4” | 3.81mm | 50.80mm | 29.46mm | 13.97mm | 15.88mm |
| MCA04061 | 1/4" | 3/8" | 3.81mm | 50.80mm | 29.46mm | 13.97mm | 17.46mm |
| MCA04081 | 1/4" | 1/2" | 3.81mm | 53.85mm | 29.46mm | 16.76mm | 20.64mm |
| MCA06021 | 3/8" | 1/8" | 4.57mm | 53.09mm | 32.26mm | 13.97mm | 20.64mm |
| MCA06041 | 3/8" | 1/4” | 6.35mm | 53.59mm | 32.26mm | 13.97mm | 20.64mm |
| MCA06061 | 3/8" | 3/8" | 6.35mm | 53.59mm | 32.26mm | 13.97mm | 20.64mm |
| MCA06081 | 3/8" | 1/2" | 6.35mm | 56.13mm | 32.26mm | 16.76mm | 23.81mm |
| MCA06121 | 3/8" | 3/4” | 6.35mm | 56.39mm | 32.26mm | 16.76mm | 30.16mm |
| MCA06161 | 3/8" | 1" | 6.35mm | 60.71mm | 32.26mm | 21.59mm | 36.51mm |
| MCA08041 | 1/2” | 1/4” | 9.65mm | 55.88mm | 34.54mm | 13.97mm | 23.81mm |
| MCA08061 | 1/2” | 3/8" | 9.65mm | 55.88mm | 34.54mm | 13.97mm | 23.81mm |
| MCA08081 | 1/2” | 1/2" | 9.65mm | 58.93mm | 34.54mm | 16.76mm | 23.81mm |
| MCA08121 | 1/2” | 3/4” | 9.65mm | 58.93mm | 34.54mm | 16.76mm | 30.16mm |
| MCA08161 | 1/2” | 1" | 9.65mm | 63.75mm | 34.54mm | 21.84mm | 36.51mm |
| MCA12061 | 3/4” | 3/8" | 9.65mm | 60.20mm | 38.61mm | 14.22mm | 23.81mm |
| MCA12081 | 3/4” | 1/2" | 12.95mm | 62.99mm | 38.61mm | 17.02mm | 30.16mm |
| MCA12121 | 3/4” | 3/4” | 16.00mm | 62.99mm | 38.61mm | 17.02mm | 30.16mm |
| MCA12161 | 3/4” | 1" | 16.00mm | 67.56mm | 38.61mm | 21.59mm | 36.51mm |
| MCA16081 | 1" | 1/2" | 12.95mm | 68.33mm | 43.94mm | 17.02mm | 36.51mm |
| MCA16121 | 1" | 3/4” | 16.76mm | 68.33mm | 43.94mm | 17.02mm | 36.51mm |
| MCA16161 | 1" | 1" | 22.35mm | 73.15mm | 43.94mm | 21.84mm | 36.51mm |
