Modular Cleanroom Insulation Material

Modular Cleanroom Insulation Material

Leading Cleanroom-Specific Insulation Solution

Specially designed for cleanroom environments in pharmaceuticals, semiconductors, and high-precision manufacturing, this modular insulation material is made of high-performance PVDF closed-cell foam. It is the world’s only foam insulation product certified to FM4910, the globally recognized cleanroom material standard, redefining safety, cleanliness, and durability for cleanroom insulation.

Core Advantages, Industry Benchmark

Extreme Cleanliness, Top-Tier Compliance

Particle-free, dust-free, fiber-free, near-zero VOC emissions

FDA compliant, passing ISO 14644-8 and VDI 2083-P17 outgassing tests

Fungus/mold resistant (ASTM G21-15), no traces after 28-day testing

Condensation-resistant sealing design, ideal for low-temperature cleanroom applications

Top-Level Safety, Fire Protection Guaranteed

UL723 / ASTM E84 test: Flame Spread 0, Smoke Developed 0

European fire classification EN13501-1: B-s1,d0

Lowest flammability, smoke, and toxicity ratings among all polymer insulation materials worldwide

Inherent hydrophobicity, moisture and mold resistant, stable and safe for long-term use

Wide Temperature Range & Durability, Cost-Effective & Low-Maintenance

Operating temperature: -80°C to +160°C (up to 158°C under 5 bar steam pressure)

Low thermal conductivity (0.0314 W/m.K at 0°C), high insulation efficiency

10-year retrofit interval, no periodic replacement, low life-cycle cost

Sturdy and durable, no harmful substance release, protects equipment and personnel from scalding

Ultra-Thin & Lightweight, Extremely Easy Installation

Only 6.35mm ultra-thin profile, fits in confined spaces

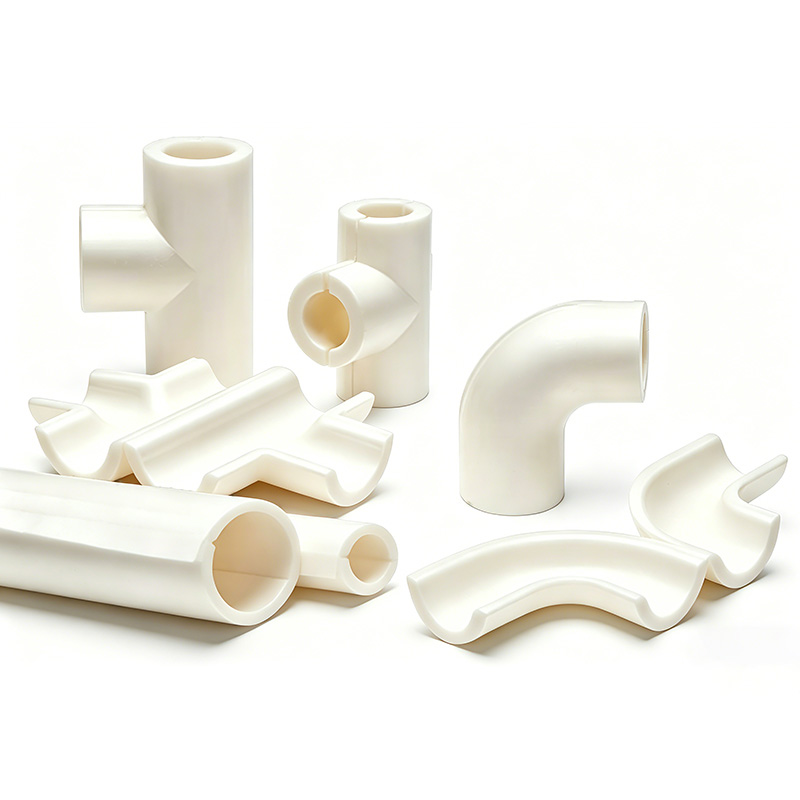

Full range of prefabricated parts: straight pipes, elbows, tees, reducers, flanges / valve boxes

Tool-free, fast cutting; supplied with proprietary sealing tape

No personal protective equipment required for installation, employee-friendly, zero maintenance burden

Applications

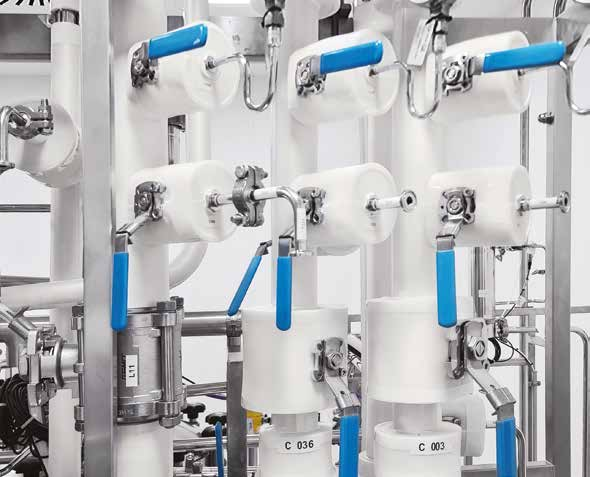

Pipeline insulation for pharmaceutical cleanrooms and biological laboratories

High-cleanliness environments in semiconductor wafer fabs

High-control manufacturing scenarios in food and medical industries

Cryogenic / thermal processing, high and low temperature process piping

Quality Certifications

FM4910 Global Cleanroom Material Certification

UL723, ASTM E84 Fire Certification

EN13501-1 European Fire Classification

ISO 14001 Environmental Management System Certification

EMS 36270, FDA Compliance Certification

Clean, safe, durable, and hassle-free — providing a one-stop high-performance insulation solution for the most demanding cleanroom environments.
