特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用

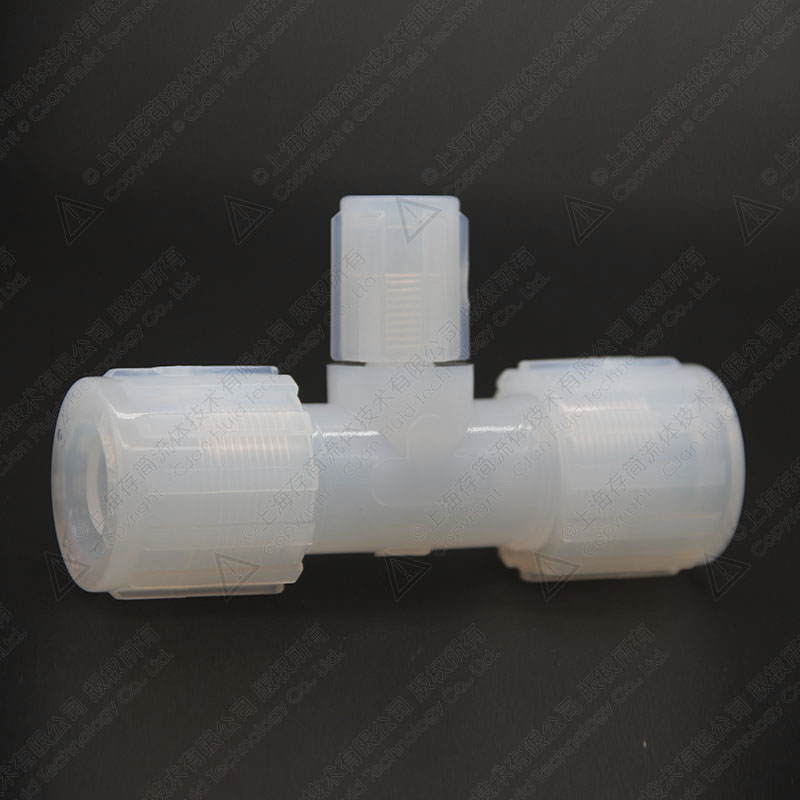

RAYSAN PFA异径三通 UTRA
特性：专业应用于高纯度的半导体行业，也适合于超纯水或腐蚀性化学物质，在-40℃至200℃之间可维持良好的尺寸稳定性和耐腐蚀性，并具有良好的机械特征，抗磨损。
材质：PFA
接口形式：扩口连接
最高使用温度：200℃
最高使用压力：0.7MPa
传送介质：液体
*螺帽有PFA和PVDF材质可选
*PVDF不适用于温度超过120℃的应用

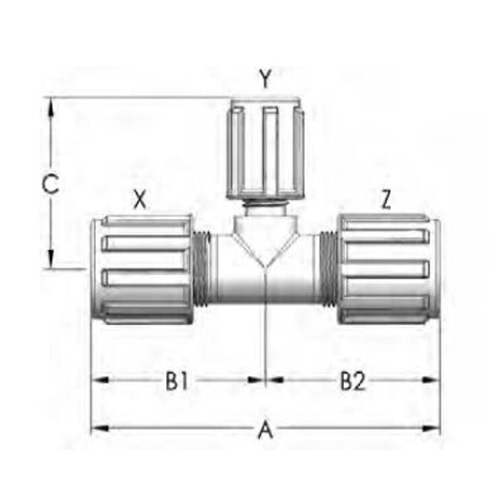

| 编码 | 管外径 X*Y*Z | Orifice | A | B1 | B2 | C |
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| UTRA0604041 | 3/8"*1/4"*1/4" | 3.81mm | 86.87mm | 44.70mm | 42.16mm | 42.16mm |
| UTRA0604061 | 3/8"*1/4"*3/8" | 3.81mm | 89.41mm | 44.70mm | 44.70mm | 42.16mm |
| UTRA0606041 | 3/8"*3/8"*1/4" | 3.81mm | 86.87mm | 44.70mm | 42.16mm | 44.70mm |
| UTRA0804041 | 1/2"*1/4"*1/4" | 3.81mm | 89.66mm | 47.50mm | 42.16mm | 42.16mm |
| UTRA0804061 | 1/2"*1/4"*3/8" | 3.81mm | 92.20mm | 47.50mm | 44.70mm | 42.16mm |
| UTRA0804081 | 1/2"*1/4"*1/2" | 3.81mm | 95.00mm | 47.50mm | 47.50mm | 42.16mm |
| UTRA0806061 | 1/2"*3/8"*3/8" | 6.35mm | 92.20mm | 47.50mm | 44.70mm | 44.70mm |
| UTRA0806081 | 1/2"*3/8"*1/2" | 6.35mm | 95.00mm | 47.50mm | 47.50mm | 44.70mm |
| UTRA0808041 | 1/2"*1/2"*1/4" | 3.81mm | 89.66mm | 47.50mm | 42.16mm | 47.50mm |
| UTRA0808061 | 1/2"*1/2"*3/8" | 9.65mm | 92.20mm | 47.50mm | 44.70mm | 47.50mm |
| UTRA1204121 | 3/4"*1/4"*3/4" | 3.81mm | 112.78mm | 56.39mm | 56.39mm | 42.16mm |
| UTRA1206121 | 3/4"*3/8"*3/4" | 6.35mm | 112.78mm | 56.39mm | 56.39mm | 44.70mm |
| UTRA1208081 | 3/4"*1/2"*1/2" | 9.65mm | 103.89mm | 56.39mm | 47.50mm | 47.50mm |
| UTRA1208121 | 3/4"*1/2"*3/4” | 9.65mm | 112.78mm | 56.39mm | 56.39mm | 47.50mm |
| UTRA1212061 | 3/4"*3/4"*3/8" | 6.35mm | 101.09mm | 56.39mm | 44.70mm | 56.39mm |
| UTRA1212081 | 3/4"*3/4"*1/2" | 9.65mm | 103.89mm | 56.39mm | 47.50mm | 56.39mm |
| UTRA1604161 | 1"*1/4"*1" | 3.81mm | 137.16mm | 68.58mm | 68.58mm | 51.31mm |
| UTRA1606161 | 1"*3/8"*1" | 6.35mm | 137.16mm | 68.58mm | 68.58mm | 54.40mm |
| UTRA1608161 | 1"*1/2"*1" | 9.65mm | 137.16mm | 68.58mm | 68.58mm | 57.40mm |
| UTRA1612161 | 1"*3/4"*1" | 16.00mm | 137.16mm | 68.58mm | 68.58mm | 56.39mm |
| UTRA1612121 | 1"*3/4"*3/4" | 16.00mm | 124.97mm | 68.58mm | 56.39mm | 56.39mm |
| UTRA1616081 | 1"*1"*1/2" | 9.65mm | 124.97mm | 68.58mm | 56.39mm | 68.58mm |
| UTRA1616121 | 1"*1"*3/4” | 16.00mm | 124.97mm | 68.58mm | 56.39mm | 68.58mm |
